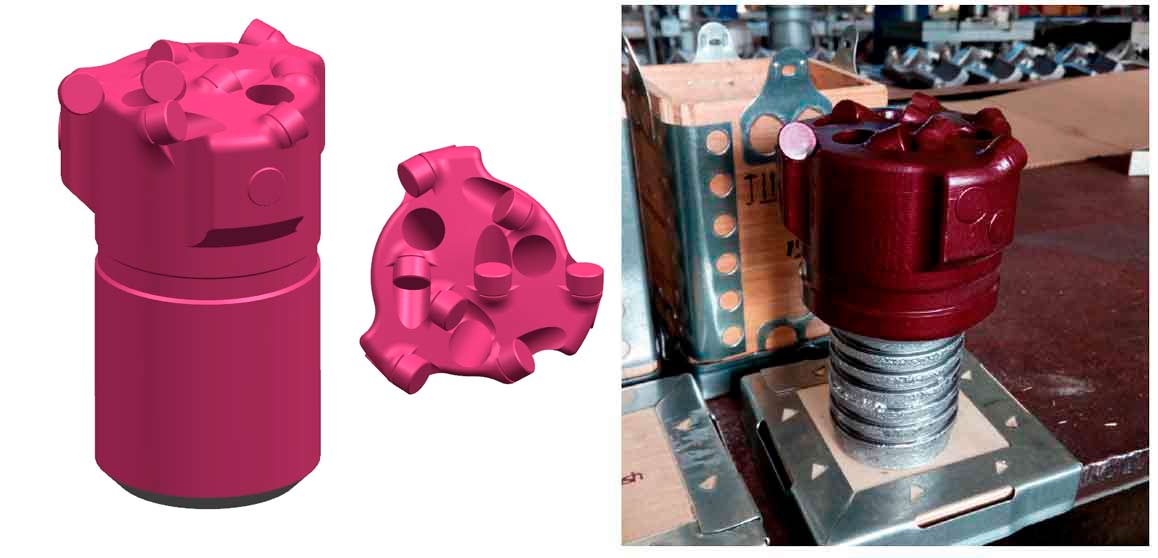

FDC Mining Drill Bits
Fixed Diamond Cutter Technology for Mining Applications
VBM FDC (Fixed Diamond Cutter) mining bits bring advanced fixed-cutter technology to mining applications including geological exploration drilling, mine degassing boreholes, and dewatering wells. These bits combine the high penetration rates of PDC cutting technology with the durability required for mining ground conditions, delivering efficient and cost-effective drilling performance.
Request a Quote View SpecificationsKey Features
Fixed Cutter Efficiency
PDC cutting elements provide continuous shearing action that delivers higher penetration rates than conventional roller cone bits in suitable formations.
Exploration Optimized
Designed for the drilling conditions encountered in mineral exploration, including variable ground conditions and the need for reliable borehole completion.
Degassing Capability
Suitable for drilling methane degassing boreholes in coal mining operations where efficient hole completion is essential for mine safety.
Cost-Effective Operations
Higher penetration rates and extended bit life reduce the cost per meter of borehole construction in exploration and mine infrastructure drilling.
Technical Specifications
| Parameter | Value |
|---|---|
| Series | FDC Mining |
| Bit Type | Fixed Diamond Cutter (PDC) |
| Body Material | Steel |
| Diameter Range | 76.2 mm (3") to 215.9 mm (8 1/2") |
| Formation Hardness | Soft to Medium |
| Number of Blades | 3 to 6 |
| Cutter Size | 8 mm / 13 mm / 16 mm |
| Connection Type | API Regular / Mining thread |
| Flush Type | Mud / Air-water mist |
| Operating Method | Rotary |
| Recommended RPM | 100 - 300 RPM |
| Recommended WOB | 5 - 25 kN |
Application Areas
Geological Exploration
Efficient drilling of exploration boreholes for mineral deposit evaluation, orebody delineation, and geological mapping programs.
Mine Degassing
Rapid completion of methane drainage boreholes in coal mines, supporting compliance with mine safety regulations and reducing explosion risk.
Dewatering Wells
Drilling dewatering boreholes to lower the water table ahead of mining operations, enabling safe and efficient ore extraction.
Geotechnical Investigation
Cost-effective drilling for geotechnical boreholes required for mine planning, slope stability assessment, and foundation design.
Related Products
Request a Quote for FDC Mining Bits
Contact our technical team for pricing, availability, and custom configurations. We provide fast delivery across the UAE and the entire Middle East region.
FDC Mining Bits: Advanced Fixed Cutter Technology for Mining Drilling
The application of fixed diamond cutter (FDC) technology to mining drilling represents a significant advancement in drilling efficiency for exploration and mine infrastructure applications. While roller cone bits have traditionally dominated mining drilling, FDC bits offer compelling advantages in formations where their shearing cutting action can be fully utilized. VBM FDC mining bits are specifically designed to bring these advantages to the mining sector.
Geological exploration drilling demands reliable borehole completion across variable and often unpredictable ground conditions. The FDC mining bit design incorporates robust blade structures and premium PDC cutters that maintain cutting efficiency through the formation transitions common in exploration drilling. The higher penetration rates achievable with FDC technology translate directly to more meters drilled per shift, accelerating exploration timelines and reducing drilling costs.
Mine degassing is a critical safety operation in coal mining, and the speed of borehole completion directly impacts mine safety. FDC bits can drill methane drainage boreholes significantly faster than conventional alternatives in the soft to medium formations typically associated with coal measures. This speed advantage means more drainage boreholes can be completed in available timeframes, improving methane capture rates and enhancing mine safety.
VBM Middle East supplies FDC mining bits to mining companies and drilling contractors across the region. Our range covers the most common exploration and infrastructure drilling diameters, with configurations optimized for the geological conditions of the Middle East. Contact our technical team to discuss how FDC technology can improve the efficiency and economics of your mining drilling program.
